Chemical fiber carding and complete set of non-woven cloth production line

  • BG214Z Non-woven Cloth Carding Machine
BG214Z Non-woven Cloth Carding Machine

BG214Z Non-woven Cloth Carding Machine

  • Product description: BG214Z Non-woven Cloth Carding Machine

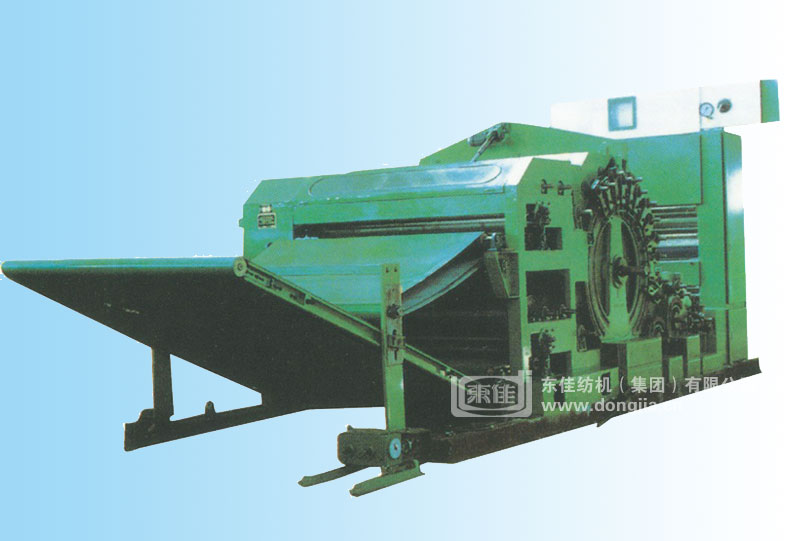

BG214Z Non-woven Cloth Carding Machine


Machine use:

This machine is applicable to the carding of fiber materials in the process of non-woven cloth production. It can fluff and card the preliminarily opened and blended chemical fiber materials into filaments, have them mixed in disorder and levelled off, and then make them into continuous webs of even thickness with certain strength aspect ratio for the following process.
The main technical parameters:
1. The breadth (mm): 1550; 2000; 2500
2. Applicable materials: Chemical fiber, 1.5-6D, with the length<76mm
3. No. of carding points:  6
4. Delivery speed: 61m/min (max.)
5. Stripping form: Roller stripping
6. Delivery fixed weight: 10-40g/m2
7. Productive capacity: 85-320kg/set.h (for the breadth 2500mm)
8. The total power: 15.0kW
9. The floor space (m2):
7300×3100(L×W)-for the breadth 1550mm
7300×3550(L×W)-for the breadth 2000mm
7300×4050(L×W)-for the breadth 2500mm
